16-Tire Heavy Equipment Trailer
STANDARD FEATURES
- Construction: 130 KSI/100 KSI yield steel
- Permitted NET Load: CA, NV, AZ, NM, UT, TX – 46 Tons*
- Axles: 4 trunnion, GAWR 18,160 lbs. each
- GVWR: 106,000 lbs.
- Base trailer weight: Approximately 13,300 lbs. (21’6” Deck)
- Suspension: Murray 3-point system
- Expando Power: Murray 6” air cylinders
- Brakes: S-Cam ABS Brakes (4S2M), Automatic Slack Adjusters
- Wheels: 8-hole, hub piloted aluminum
- Tires: 215/75R x 17.5 – Hankook or Continental
- Decking: 3” Apitong outside, 2” Douglas Fir inside
- Paint: DuPont IMRON ELITE
- Lighting: LED

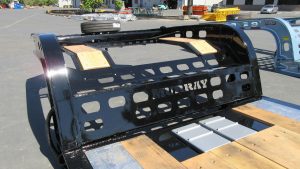

- Goosenecks: Mechanical Removable wide neck
- Goosenecks: Straight or Tapered Corners
- Deck Height: 27” nominal center of deck (dependent on 5th wheel height)
- Over-front loading: 10”
- Over-rear loading: 34”
- Overall Length: 42’-3” with standard 21’-6” deck, gooseneck, & tail
* Capacity and weight estimate are based on previously completed trailers. Actual capacity may vary depending on pulling tractor and options selected.
Product Documentation
OPTIONAL FEATURES
- Deck Lengths to 22’-10”
- 16” Longer Gooseneck
- Second kingpin
- Air operated “RoboLink” & Deck Latch release (US PAT #8752854, 9272591)
- Steel inside islands between tires
- Disc brakes with ABS
- Full or half wheel covers
- 20” Longer Tail
- Lockable tool boxes in wide neck
- Front & rear loading ramps
- ”D” Rings
- Outriggers – Sliding or Removable Chain boxes
- Excavator deck well or pan
- Loadmaster Style Rear End

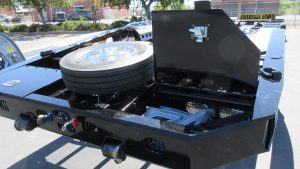

- Spare tire with lockable mount
